Compact Elevation System TLR

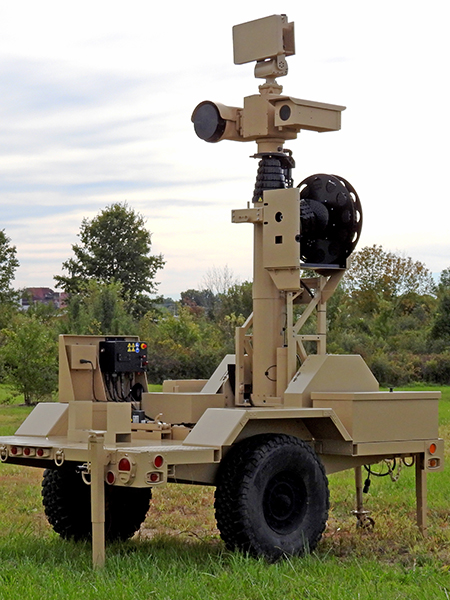

Will-Burt’s Compact Elevation System TLR is a rugged and precise mobile elevation platform that provides rapid deployment of sensors in as little as 30 seconds from a trailer platform

Will-Burt’s Compact Elevation System TLR is a rugged and precise mobile elevation platform that provides rapid deployment of sensors in as little as 30 seconds from a trailer platform. The compact design allows significant room for the sensor payload and auxiliary equipment. Available with an electro-mechanical or pneumatic elevation system, payload stability is assured with section keys and keyways that minimize rotational movement.

The Compact Elevation System TLR is customizable and can accommodate a variety of power systems as specified by the customer.

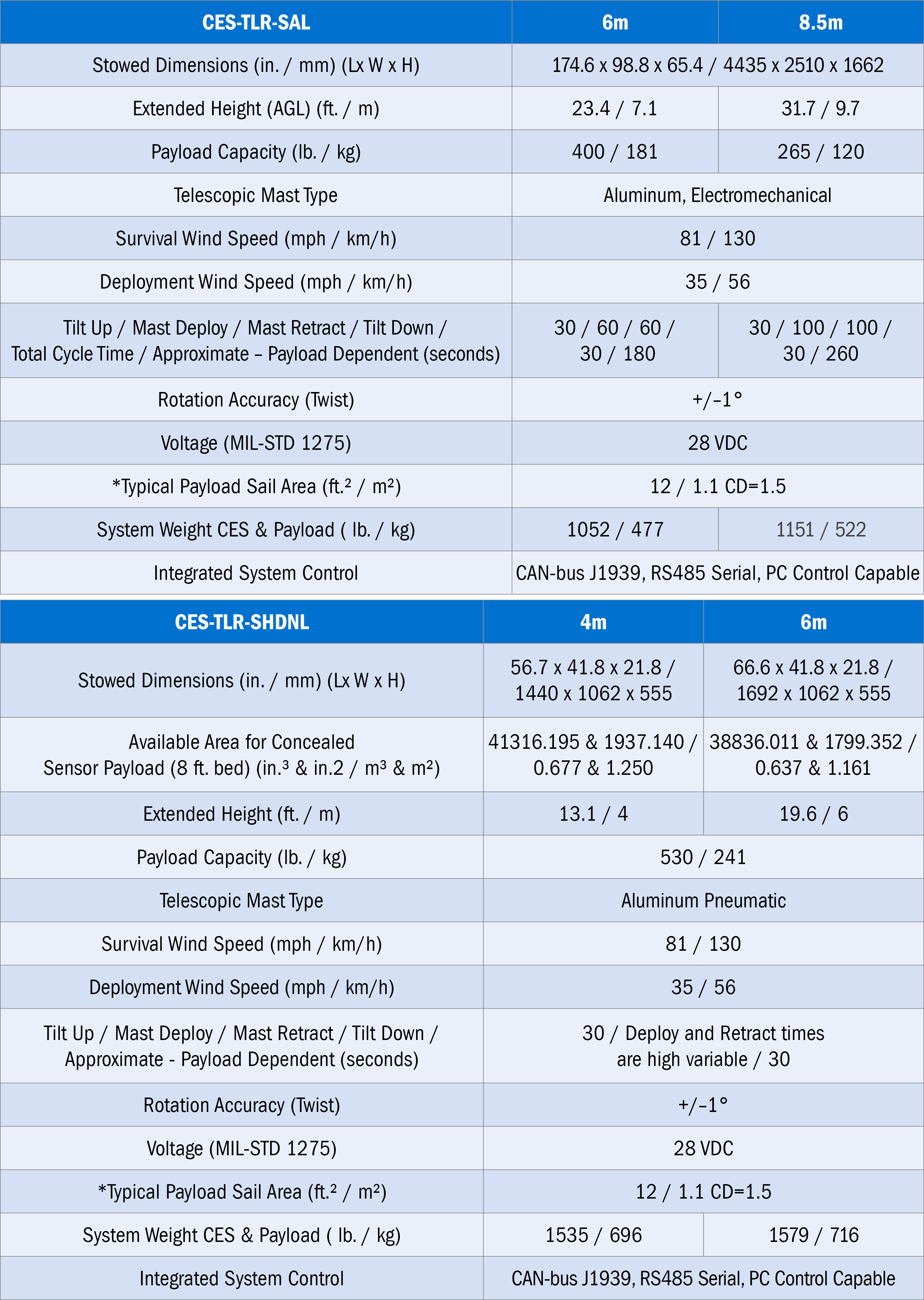

Essential Features

  • Rapid Deployment of Sensors – 30 seconds
  • Heights from 13 ft. / 4m to 28 ft. / 8.5m
  • Payload up to 530 lb. / 241kg
  • Minimized mast twist
    • Full-length mast section keys
  • Strong and Robust
    • No need for guying with field-proven rugged telescoping mast design
  • Flexible Installation
    • Skid design allows for installation on a variety of platforms
    • Available with mechanical or pneumatic elevation system
    • Cable management system
  • Integrated Controls
