D-TEC® Safety System

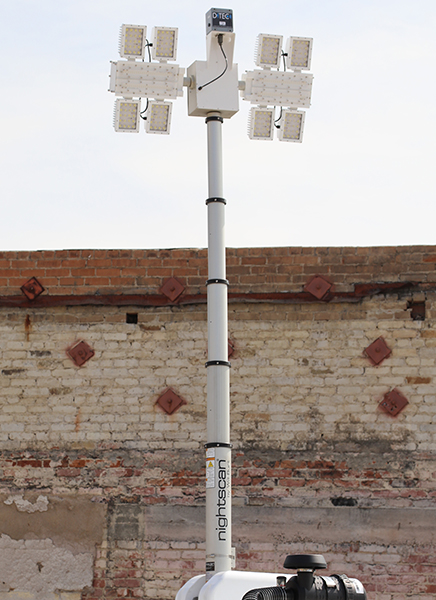

The D-TEC® safety system provides overhead power line and above-the-mast illumination. The built-in high voltage, electromagnetic and electrostatic field detection system automatically stops mast extension, providing added protection for the operator and equipment. The D-TEC® safety system is available on powerlite and vertical telescoping masts. View the specifications below or contact a Will-Burt sales representative for more information about the D-TEC Safety System.
System Safety Features
-
Dual threshold AC alert, E-Field (current) and H-Field (magnetic)
- AC voltage detection range starting at 110VAC/60Hz
- Senses both AC current and AC voltage
- 3-axis field detection
- LED Look-Up Light
- Audible alerts
- Alphanumeric LED display
- Built-in Emergency Bypass
- Expanded self-testing features
- Factory pre-set siren and verbal warning in English and Spanish
D-TEC Specifications | |
---|---|
Detection | AC voltage, electromagnetic & electrostatic field detection |
Look-up Light | LED Look-up Light |
Power Requirements | 12 VDC 10 Amps / 24 VDC 5 Amps |
Interconnecting Cable | 2 twisted pair shielded (sensor to control unit) |
Environmental Conditions | Sensor IP67, Control IP65 |
Display Options | 3.5” × 4.5” × 8.5” Case Also available as single height rack mount |
Sensor Housing | 4.9” H x 5” W x 3.7” D |
