Night Scan®
Pump Up Light Mast

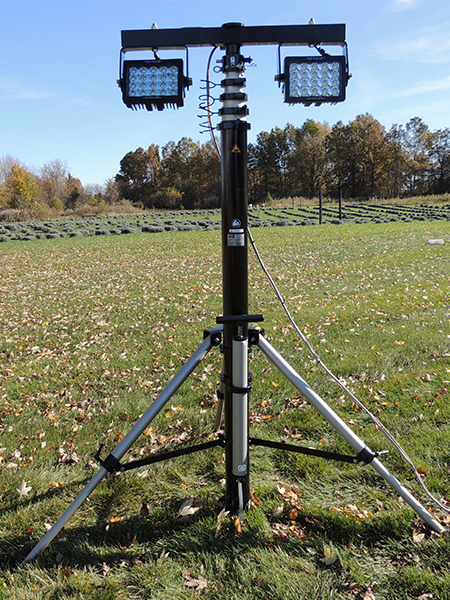

The Night Scan Pump-Up Light Mast provides a fast and affordable way to illuminate your work area. The lightweight pneumatic mast quickly elevates to 16 feet by means of a built-in hand pump and the powerful and efficient LED lights illuminate a wide area while being powered by the vehicle. The tower quickly mounts into an optional 2” hitch receiver, tripod and/or drive-on stand. and robust performance.
Essential Features
- 40,000 lumens from two Night Scan X200 LED lights
- Available heights – 13 or 19 ft.
- 60 second extension time
- Mast transport bag included
- Powered from vehicle – 12 volts, 18.4 amps
- Total system weight – 80 pounds
- Tower system warranty – 2 years
Specifications
Model | 5770801 | 5769501 |
---|---|---|
Extended Height | 13.1 ft. / 4 m | 19.6 ft. / 6 m |
Nested Height | 4.2 ft. / 1.25 m | 5.3 ft. / 1.60 m |
Payload Capacity | 55.1 lbs. / 25 kg | 55.1 lbs. / 25 kg |
Number of Sections | 5 | 5 |
Tube Diameter | 3.54 in. - 1.97 in. / 90 mm - 50 mm | 3.54 in. - 1.97 in. / 90 mm - 50 mm |
Collar Type | Friction Locking | Friction Locking |
Finish | Black paint and Clear anodize | Black paint and Clear anodize |
